Visualising designer quantum states in stable macrocycle quantum corrals

NUS scientists have devised an on-surface synthetic protocol to construct atomically-precise and stable organic quantum corrals (OQCs), which induce a series of new quantum resonance states.

Creating atomically-precise quantum architectures with high digital fidelity and desired quantum states represents an important goal in a new era of quantum technology. The intrinsic fidelity offered by these atomically-precise quantum nanostructures also makes them excellent candidates for exploring exotic quantum science (for example, quantum confinement, quantum mirage, and quantum holograph effects) and also for potential applications in quantum technologies (for example, quantum information processing). Future technological implementation of these quantum materials has to meet the following key criteria: high digital fidelity, chemical robustness of the artificial quantum architectures, and scalability in the fabrication of the quantum nanostructures. Unfortunately, current approaches and developments, such as atomic manipulation in an atom-by-atom or molecule-by-molecule manner or molecular assembly via non-covalent intermolecular interactions, are unable to meet all of these critical requirements.

A research team led by Prof Jiong LU from the Department of Chemistry, National University of Singapore (NUS) has devised an on-surface synthetic protocol (Figure (a)) for the construction of atomically–precise and covalently linked organic quantum corrals (OQCs) with dimensions comparable to the wavelength of surface electrons (Figure (b)) to meet the needs of quantum materials. Quantum corrals are two-dimensional nanoscale structures, which are formed by positioning individual atoms or molecules in specific arrangements that form closed structures. The protocol allows for the precise engineering of quantum states in OQCs with specific designs, which can be used to control the properties of surface electrons.

The molecular precursors, which are specially designed by Prof Chunyan CHI also from the Department of Chemistry, NUS ensure that the on-surface synthesis results in various OQCs with desired geometries and large dimensions. The research team also used state-of-the-art scanning tunneling microscopy (STM) to directly visualise a series of new quantum resonance states that arise from a collective interference of scattered electron waves inside the nanocavities of the OQCs, corroborated by theoretical studies conducted by Prof Aleksandr RODIN from Yale-NUS College.

The team demonstrated the potential to engineer quantum resonance states in open OQCs, which is achieved by the manipulation of the organic structure using the STM tip. This technique opens up opportunities for engineering desired quantum resonance states in chemically robust OQCs for specific quantum applications.

Prof Lu said, “Our work opens up a new avenue for the fabrication of robust large-sized OQCs with well-defined geometries for the exploration of designer quantum states and their electronic coupling in novel quantum architectures. Atomically-precise and covalently-linked OQCs synthesized in this work are technologically alluring as they offer both high chemical stability and digital fidelity required for on-chip quantum device operation.”

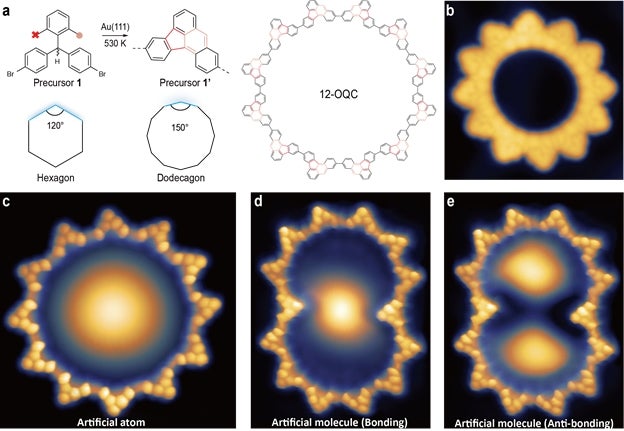

Figure shows the on-surface synthesis of organic quantum corrals and the quantum resonance states inside these corrals. (a) Schematic illustrating the synthetic pathway from precursor (left) to the 12-unit macrocycle molecule (right) with a proposed intermediate (precursor 1′) with embedded pentagonal ring (middle). (b) Scanning tunnelling microscopy (STM) image of one 12-unit macrocycle (12-OQC). (c) Corresponding bond resolved-STM (BR-STM) image of 12-OQC, superimposed with constant-current dI/dV map of quantum resonance states. (d) and (e) BR-STM image of a symmetric Cassini oval-shaped OQC, superimposed with constant-current dI/dV maps of (d) artificial molecular bonding and (e) anti-bonding states, respectively. [Credit: Nature Communications]

Reference

Peng X;  Mahalingam H;  Dong S;  Mutombo P;  Su J;  Telychko M;  Song S;  Lyu P;  Ng PW; Wu J; Jelínk P*; Chi C*; Rodin A*; Lu J*, “Visualizing designer quantum states in stable macrocycle quantum corrals” NATURE COMMUNICATIONS Volume 12 Article number: 5895 DOI: 10.1038/s41467-021-26198-8 Published: 2021.
